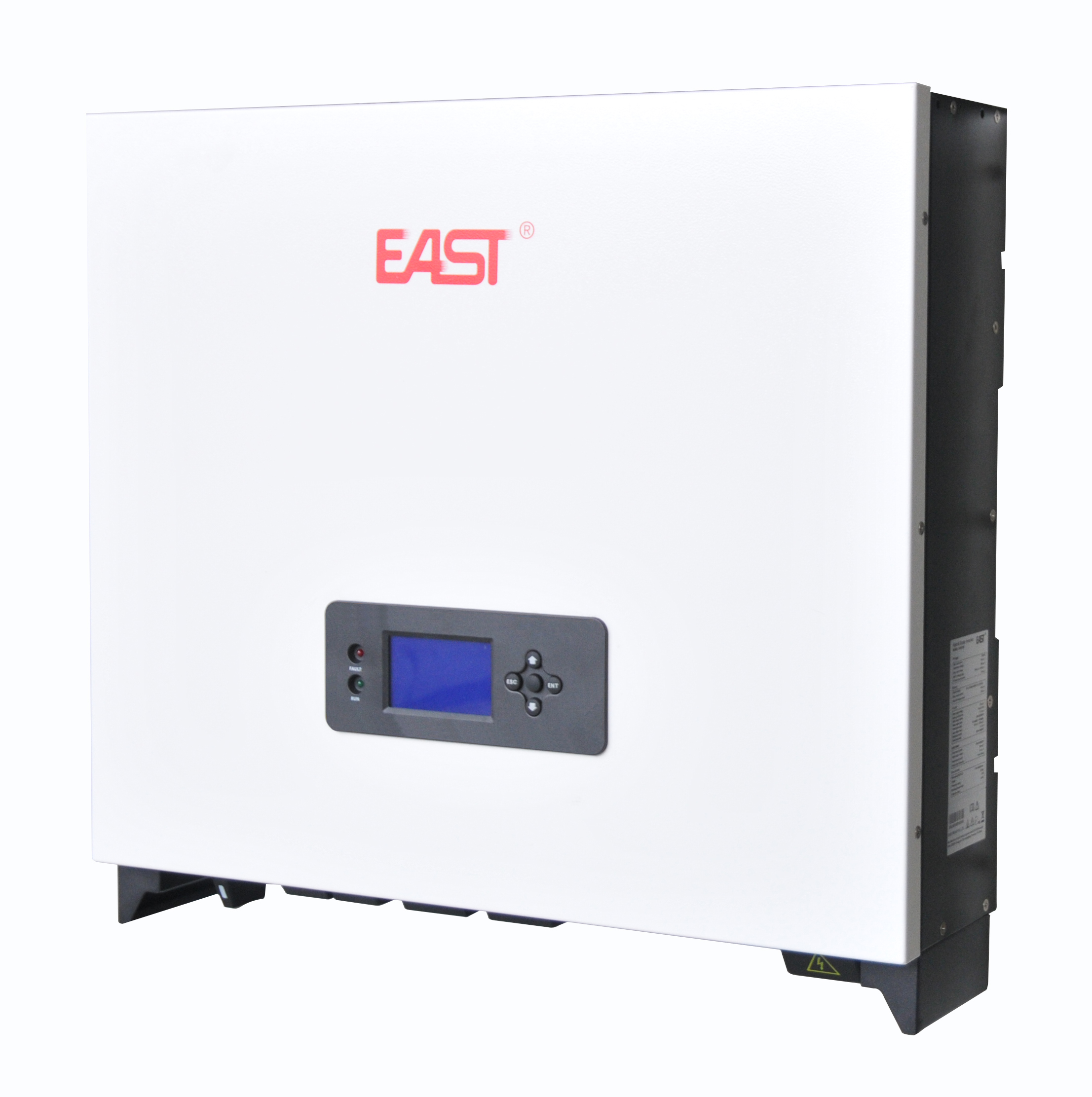

EA5KHD

Characteristics Technical Specifications Documents

● Solar, battery and utility power sources

● Flexible & programmable operating modes

● Smart energy management

● Soft-switching technology, DSP control technology

● Small footprint, light weight, simplified installation

● High Efficiency 96%

● Backflow prevention

● Flexible adaptation of Lithium battery

● Battery management

● Intelligent real-time monitoring


MODEL
EA5KHD
Rated power
5000 W
Operating mode
Flexible setting via upper computer software or display screen
PV INPUT
Max. input power
5500 W
Max. input voltage
550 Vdc
Rated input voltage
360 Vdc
Start-up voltage
115 Vdc
Max. input current
12 A

MPPT voltage range

(Full load)
120 ~ 530 Vdc (250 ~ 450 Vdc)
Number of MPPTs
2
AC OUTPUT
Rated AC power
5000 VA / 5000 W
Rated output voltage
230 Vac
Output voltage range
170 ~ 280 Vac
Rated output frequency
50 / 60 Hz
Output frequency range
50 ± 5 / 60 ± 5 Hz
Rated output current
21.7 A
Power factor
0.9 (leading) ~ 0.9 (lagging)
THDi
≤ 3%
EPS OUTPUT
Rated EPS power
3000 VA / 3000 W
Rated EPS voltage
230 Vac (208 / 220 / 240 Vac settable)
Rated EPS current
13.0 A (14.4 A / 13.6 A / 12.5 A)
EPS voltage range
184 ~ 276 Vac
EPS frequency range
50 / 60 Hz ± 1%
THDv
≤ 3% (linear load)
BATTERY
Battery type
Li-ion, Lead-acid battery
Rated voltage
48 Vdc
Voltage range
40 ~ 58 Vdc
Charging current
Max. 50 A (10 ~ 50 A settable)
AC charge
Support
Rated discharge power
3000 W
Max. discharge current
62.5 A
TRANSFER TIME
EPS mode → On-grid mode
0 ms
On-grid mode → EPS mode
10 ms
EFFICIENCY
Max. efficiency
96%
MPPT efficiency
99%
OTHERS
Protections
Over/under voltage, over/under-frequency, over load, short-circuit, over temperature, PV reverse polarity, leakage current, insulation resistance, islanding, fan fault
Communications
 USB / RS485 (standard), SNMP / Wi-Fi / GPRS (optional)
Display
LED, Touch screen
Standards
EN 62109-1, IEC62109-2, EN 61000-6-2,EN 61000-6-3, VDE-AR-N 4105, DIN VDE 0126-1-1, DIN VDE V 0124-100, CEI 0-21,G83
IP rating
IP 20
Operating temperature
0 ~ 40℃ (> 40℃ derating)
Relative humidity
0 ~ 90%
Altitude
< 1000 m (> 1000 m derating)
Noise level at 1 m
≤ 50 dB
Topology
Transformerless (PV to Grid)
Dimensions (W × D × H) (mm)
626 × 547 × 150
Packaged dimensions  (W × D × H) (mm)
680 × 630 × 208
Net weight (kg)
22.0
Gross weight (kg)
25.0

● All specifications are subject to change without notice.
