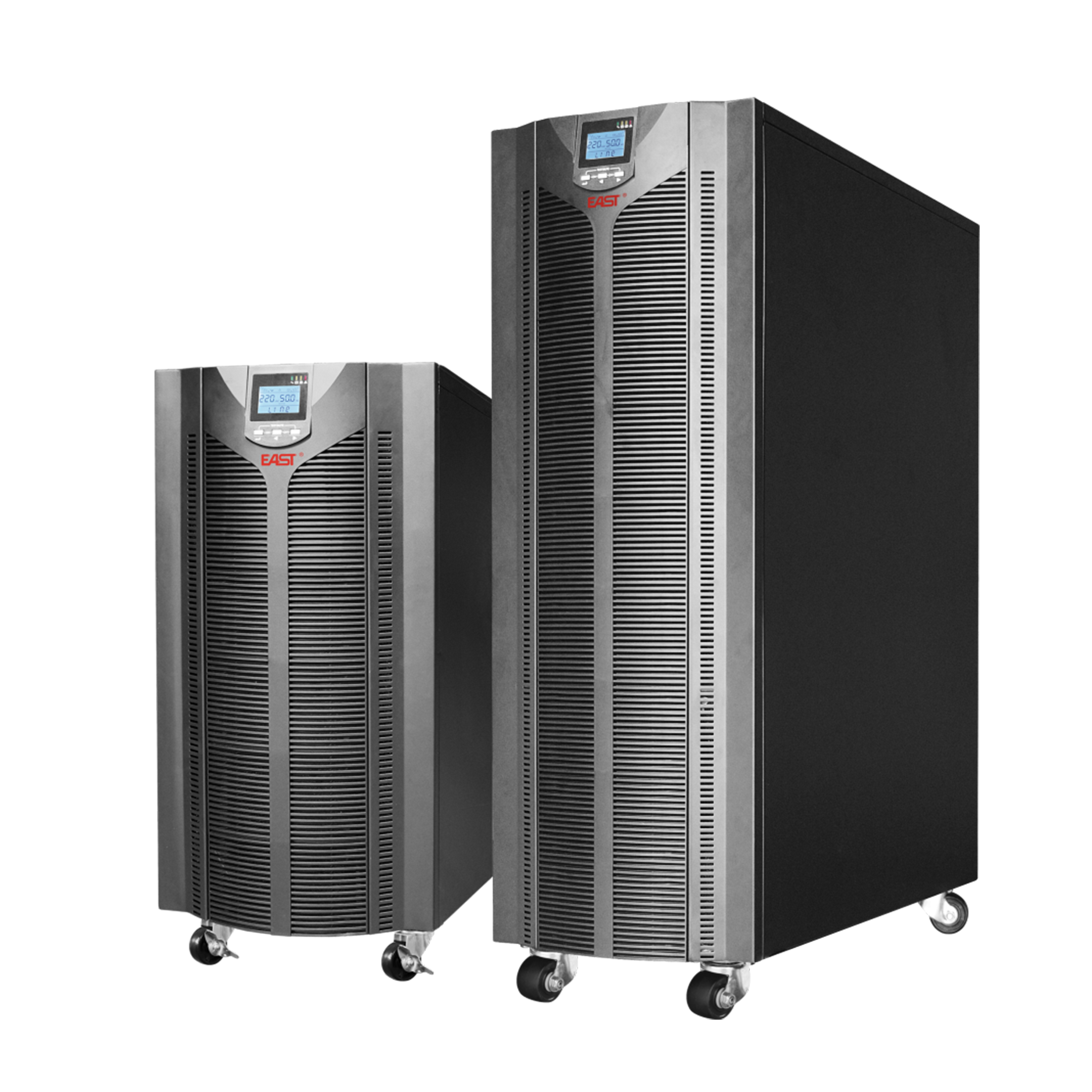

EA900Pro 10 - 15 kVA (3:3) (208V)

Characteristics Technical Specifications Documents

● DSP digital control technology

● Active power factor correction (APFC), input power factor up to 0.99

● Output power factor 1.0

● Cold start

● Dual input

● Wide input voltage range (121 V ~ 277 V)

● Auto sensing frequency

● 50 / 60 Hz frequency conversion mode

● Work efficiency up to 97% in ECO mode

● Auto control fan speed when loads varies

● Auto power ON / OFF according to the load capacity set by users

● Flexible battery configuration for using 14 / 16 / 18 / 20 pcs batteries

● Compact internal layout miniaturizes the complete unit for small footprint

● 5" colorful touchscreen display, friendly human-machine interface

● Powerful background software for parameters configuration and online updating

● Doubling the battery charging speed, 90% capacity restored in 4 hours (standard model UPS)

● Linear derating in low voltage input reducing battery discharging times

● Advanced battery management (ABM), automatic floating / equalizing charge control, charge dormancy control

● Configurable switching time from battery mode to mains mode when mains power is restored

● Effective software and hardware protection function, powerful self-diagnostic function, abundant historical records

● Standard emergency power off (EPO)

● Standard maintenance bypass

● Standard RS232 / USB communication port

● Optional RS485 / SNMP / AS400 communication port and SMS alarms

● Optional N+X redundancy parallel up to 6 units

● Optional battery temperature compensation, EMD environmental sensors



MODEL

EA9010P

EA9015P

Capacity

10 kVA / 10 KW

15 kVA / 15 kW

INPUT

Rated voltage

173 Vac / 190 Vac / 200 Vac / 208V / 220 Vac

Voltage range

156 ~ 277 Vac (no derating);

121 ~ 156 Vac (linear derating between 60% and   100% load)

Rated frequency

50 / 60 Hz (auto-sense)

Frequency range

40 ~ 70 Hz

Power factor

 ≥ 0.99

Total harmonic distortion (THDi)

≤ 5%

Bypass voltage range

-40% ~ +15% (settable)

OUTPUT

Voltage

173 Vac / 190 Vac / 200 Vac / 208 Vac / 220 Vac (settable)

Voltage regulation

± 1%

Frequency

45 ~ 55 Hz or 55 ~ 65 Hz (synchronized   range); 50 / 60 Hz ± 0.1 Hz (battery mode)

Waveform

Sinusoidal

Crest factor

3:1

Total harmonic distortion (THDu)

≤ 2% (linear load); ≤ 5% (non-linear load)

Transfer time

Mains mode to battery mode: 0 ms;   Inverter mode to bypass mode: 0 ms

Inverter overload capability

102% ~ 125%: transfer to bypass in   10 mins;

125% ~ 150%: transfer to bypass in   1 min;

> 150%: transfer to bypass in 0.5   s

Bypass overload capability

102% ~ 125%: shut down in 20 mins;

125% ~ 150%: shut down in 2 mins;

> 150%: shut down in 1 s

BATTERIES

DC voltage

Standard model: 240 VDC; Long time model: 192 VDC (168   V / 192 V / 216 V / 240 VDC optional)

Inbuilt battery of standard model

20 × 9 Ah (40 / 60 × 9 Ah   optional)

40 × 9 Ah (60 × 9 Ah optional)

Recharge time

Standard model: 90% capacity restored in 4 hours;

Long time model: depend on the   capacity of battery

SYSTEM

Efficiency

≥ 90%, ECO mode 97%

Display

5” colorful touch screen

Alarm

Battery mode, low battery, fans   fault etc.

Max. parallel numbers

6

EMI

IEC/EN62040-2

EMS

IEC61000-4-2   (ESD)

IEC61000-4-3   (RS)

IEC61000-4-4   (EFT)

IEC61000-4-5   (surge)

COMMUNICATIONS

RS232 / USB / RS485 / dry contacts

Supports Windows 98 / 2000 / 2003   / XP / Vista / 2008 / 7 / 8 / 10

SNMP

Power management from SNMP   manager and web browser

OTHERS


Humidity

20 ~ 90% RH @ 0-40 (non-condensing)

Noise level

≤ 65 dB (1m)

Dimensions (W×D×H) (mm)

350 × 655 × 732 (H)

350 × 785 × 1078 (S)

Packaged dimensions  (W×D×H) (mm)

472 × 780 × 920 (H)

472 × 910 × 1260 (S)

Net weight (kg)

61 (H), 125 (S)

65 (H), 175 (S)

Gross weight (kg)

71 (H), 140 (S)

75 (H), 200 (S)

l  Derate capacity to 90% when the output voltage is adjusted to 173 Vac.

l  S means standard model, H means long time model.

l  All specifications subject to change without notice.

l  Custom-made specifications are acceptable.
