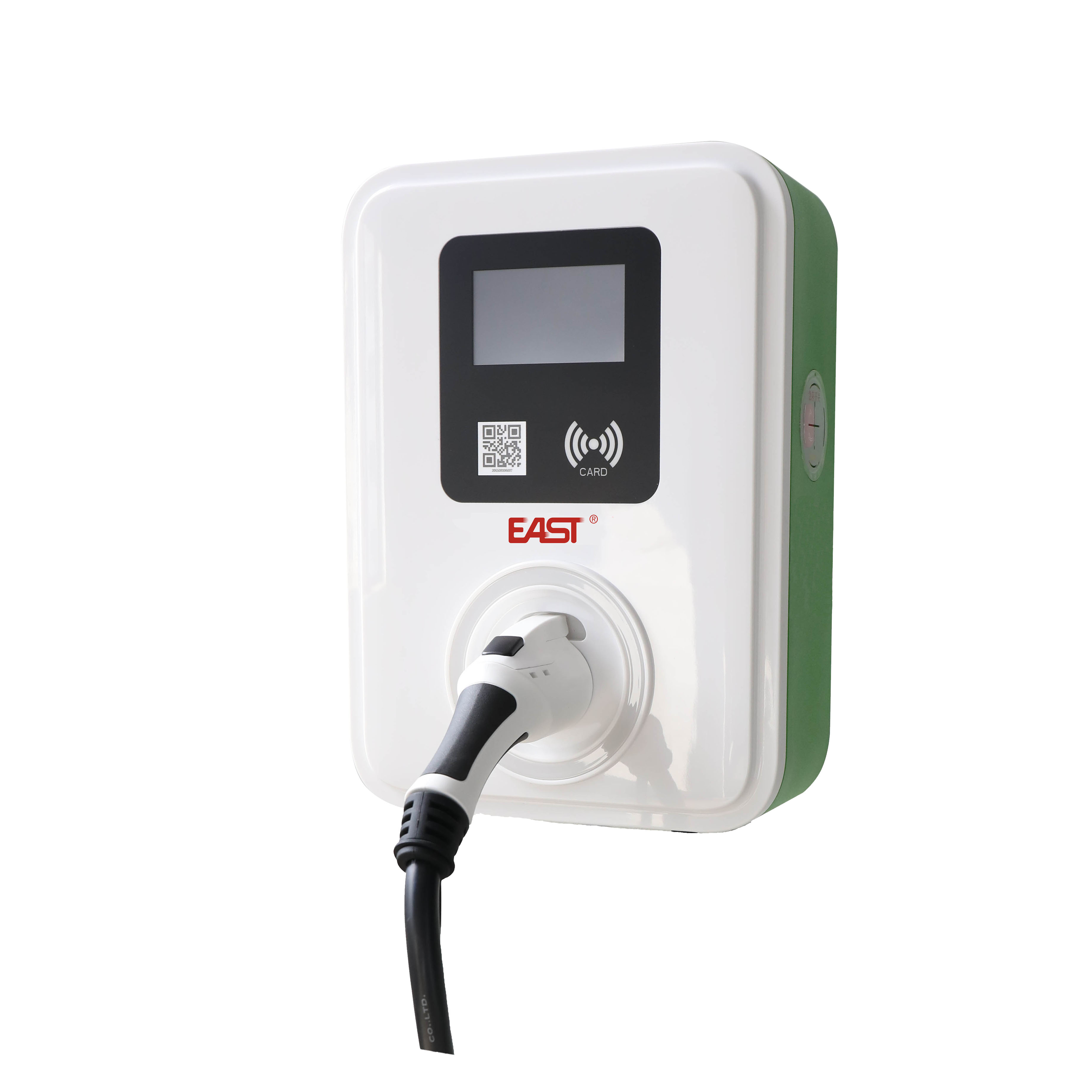

AC Wallbox EVAC-7kW/11kW/22kW

Characteristics Technical Specifications Documents

l OCPP-compliant, capable of connecting with third-party systems

l Dynamic load management, efficient distribution of energy for optimal charging

l Scheduled charging time for lower rates

l Set custom charging fees, real-time charging insights via operating system (commercial version)

l OCPI-compliant, up to 20 charge ports per Hub-Satellite configuration (commercial version)

l Compatible with every electric vehicle

l Easy to install and maintain

l Continuous uptime without abnormal interruption

l Plug and charge, quick setup and easy control via app (home version)

l Current limiting protection to prevent nuisance tripping

l 9-fold protections for user and vehicle safety

l CE & RoHS certified by third party

l Robust, weatherproof design, up to IP65, -40to 60operating temperature

l Always connected with Wi-Fi, Bluetooth, and Ethernet (standard for commercial version, optional for home version), 4G (optional for commercial version), remote firmware upgrades and monitoring




Features

Items

Home Charging

Commercial Charging

INPUT / OUTPUT

Capacity

7kW / 11kW

7kW / 11kW / 22kW

Voltage

230VAC±20% / 400VAC±20%

Current

Single phase 7kW(32A) / Three phase 11kW(16A)

Single phase 7kW(32A) / Three phase 11kW(16A) / 22kW(32A)

Frequency

50Hz±1% / 60Hz±1%

Network Type

TN / TT / IT (LN voltage 240V)

TN / TT / IT

HUMAN-MACHINE INTERACTION INTERFACE

Material

PC+ASA

LED indicator

Available

Screen

N/A

4.3-inch color screen (optional)

Charging cable length

Standard: 3.5m; Optional: 5m

Standard: 3.5m; Optional: 5m, 7m

Parent/child

N/A

Up to 20 child units per parent unit

Standby power consumption

<4W

CHARGING CONFIGURATION AND STANDARD

Vehicle connection

Cable (standard) / Socket (optional)

Certification

CE, RoHS

Standards

EN IEC 61851-1, EN IEC 61851-21-2

Communication

Standard: Wi-Fi, Bluetooth;  Optional: PLC, Ethernet

Standard: Wi-Fi, Bluetooth, Ethernet; Optional: 4G

User authentication

Plug and charge, RFID, APP

RFID, APP

Backend protocol

OCPP1.6J

OCPP1.6J, OCPP2.0

PROTECTION

Residual current protection

30mA VAC, 6mA VDC

Safety protection

Overvoltage, undervoltage, grounding, ambient overtemperature, lightning, leakage, overcurrent, relay sticking detection, residual current protection, integrated surge protection, ground continuity detection

OTHERS

Operating  temperature

-40 ~ +60

Relative humidity

5%~95%

Altitude

2000m

IP rating

Cable version: IP65; Socket version: IP55

Installation

Wall- / pole-mounting

Dimensions (H*W*D) (mm)

320 x 190 x 110

395 x 235 x 110

Package dimension (H*W*D) (mm)

Cable: 470 x 390 x 315

Socket: 410 x 280 x 280

Cable: 545 x 435 x 315

Socket: 485 x 325 x 280

Weight

Cable version: 5kg (cable and pole not included), Socket version: 4kg


AC Wallbox EVAC-7kW/11kW/22kW Datasheet - PDF
