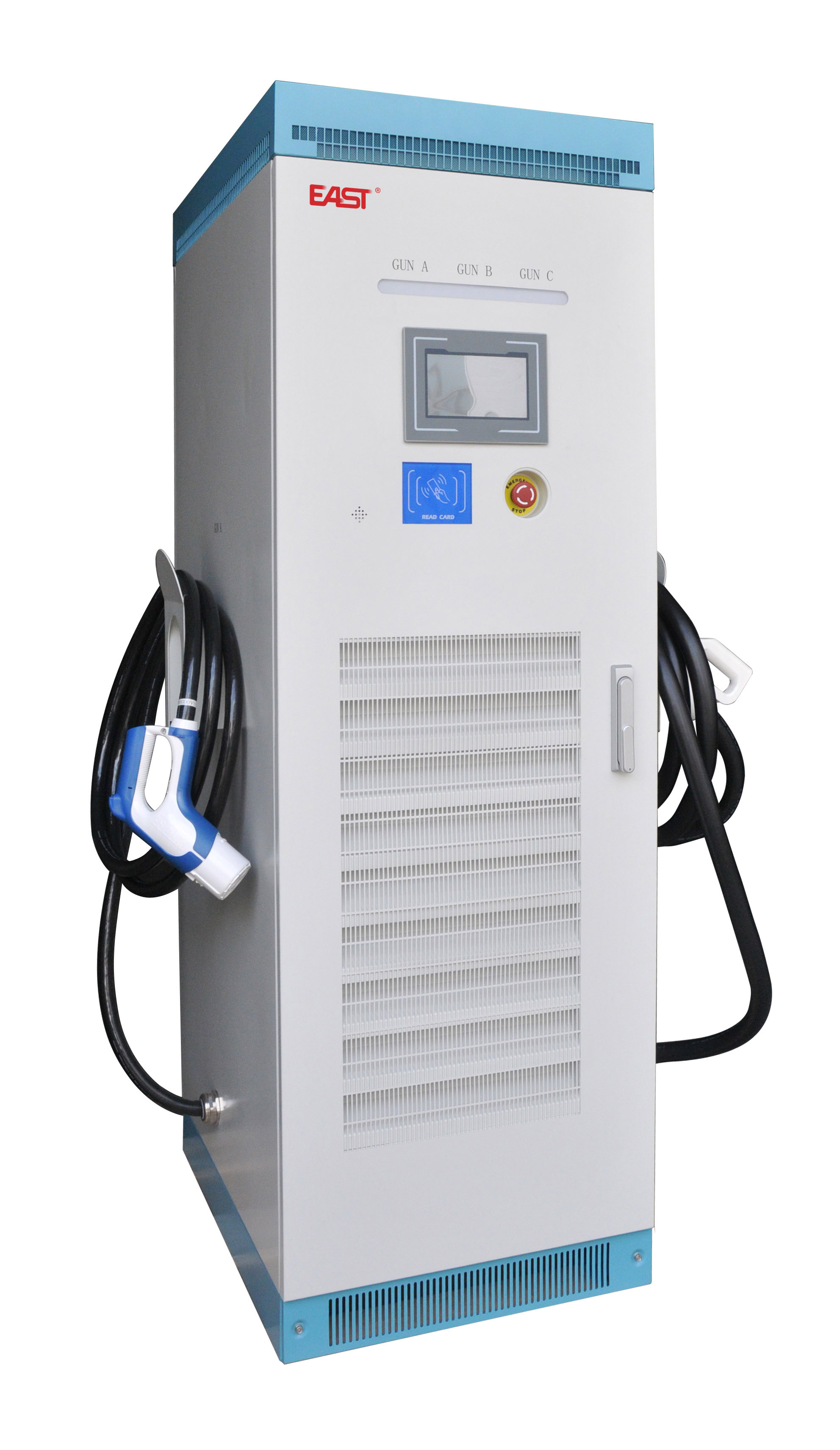

Tri AC/DC QUICHAR EVAD-142KW

Characteristics Technical Specifications Documents

● Featured with dual technology allowing simultaneous charging in DC and AC.

Supports CCS 2 combo, CHAdeMO and CCS 2 AC functionality

● Features in three outlets: a 60 kW DC ports (European standard), a 60 kW DC ports (Japanese standard) and a 22 kW AC port (European standard)

● High efficiency, high power factor, low input harmonic current, no need for additional reactive power compensation and harmonic suppression equipment

● Hot-swap modular design, easy maintenance

● Daylight readable 7” touchscreen display

● EV standards:  IEC 62196, IEC 61851, JEVS G105


Model

EVAD-142kW

INPUT

Input voltage

415 Vac ± 10% (three-phase   five-wire: L1, L2, L3, N, PE)

Input frequency

50 Hz ± 5

THD

≤ 5% of nominal   voltage

Power factor

≥ 0.99 (full   load)

OUTPUT

Charger power   rating

142 kW ( 22 kW   CCS + 60 kW CCS and 60 kW CHAdeMO)

Output voltage

200 - 1000 Vdc

Efficiency

≥ 95 %

CHARGING   CONFIGURATION AND STANDARD

Number of charging plugs

3

Charging cable length

5 m

Charging protocols



Between EV   Charger and EV

CHAdeMO whereas   PLC Communication for CCS 2

Between EV and   Central Server

OCPP v 1.6 or   above - 10/100 Base-T Ethernet (Standard)/ Optical GSM Modem (2G/3G/4G) or   Wireless

Standards

IEC 62196, IEC   61851, JEVS G105

Internal battery   back-up

Battery back-up   for minimum 2 hours for the control system and billing unit. Data log should   be synchronized with CMS during back up time , in case battery drains out

OTHERS

Display

7" TFT LCD   Touch Screen

Payment

Smart   Card/QR/OTP/App Server Based Online

Operating   temperature

-20 ~ + 55

Storage   temperature

-40 ~ + 80

Relative   humidity

0 to 95%   (non-Condensing)

Altitude

Up to 2000 m

IP rating

IP 54

Dimensions (W ×   D × H) (mm)

600 × 800 × 1800

Net weight (kg)

300

Packaged   dimensions (W × D × H) (mm)

900 × 1000 ×   2100

Gross weight   (kg)

325


Tri AC/DC QUICHAR EVAD-142KW Datasheet - PDF
