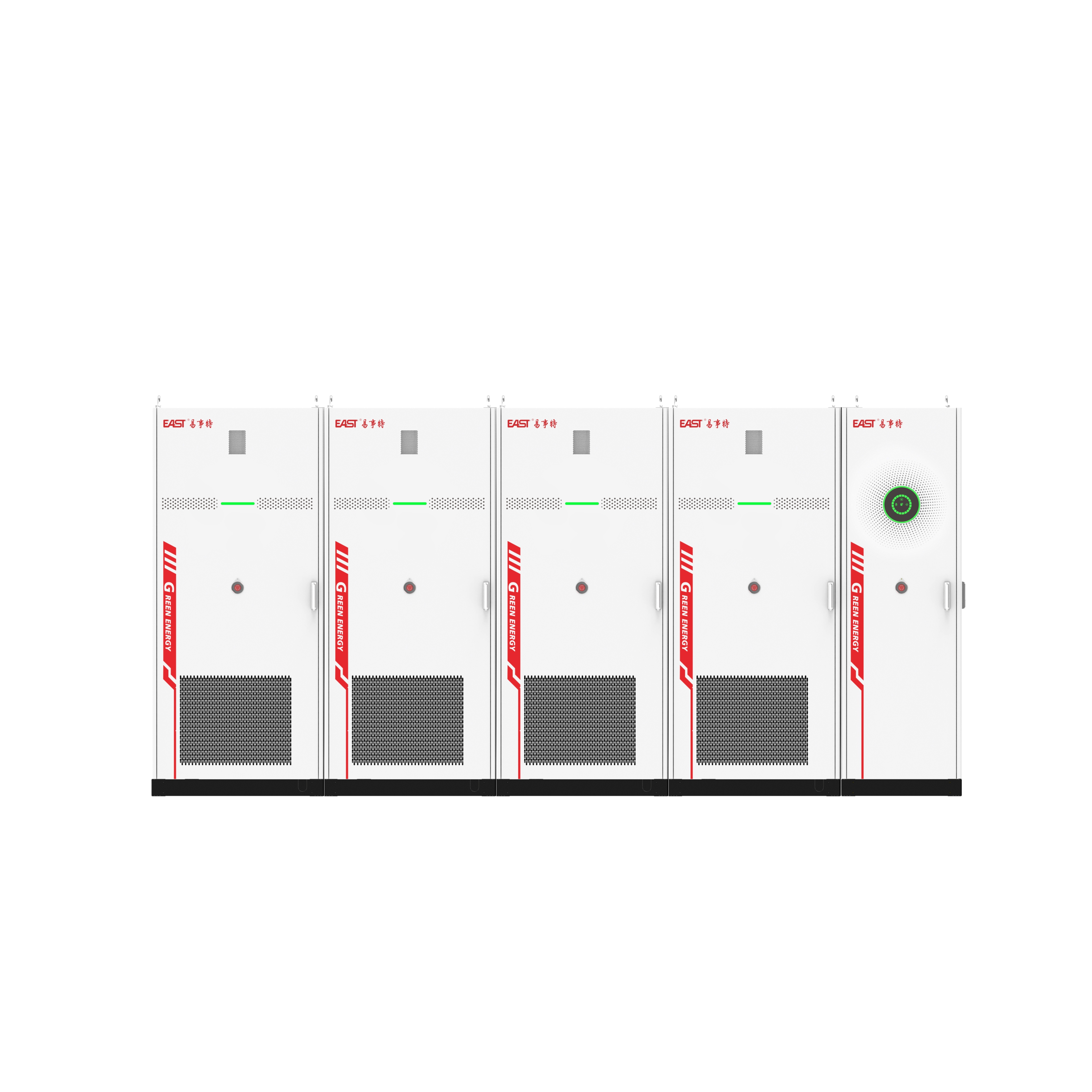

C&I Energy Storage System EAPVESS130K261KWH-C
● High protection level: cabinet IP54, C4 anti-corrosion; Inverter IP66 protection, battery PACK IP67 protection, can be used in a variety of harsh scenarios
● High conversion efficiency: the PV-ESS inverter adopts SiC solution on a large scale, with the highest conversion efficiency reaching 98.2%, reducing the kWh cost
● Three-level fire-fighting strategy: Level 1 power off and shutdown protection, Level 2 perfluorohexanone gas start, Level 3 water spray fire-fighting to prevent re-ignition
● Intelligent monitoring: real-time intelligent power balance control, energy management and scheduling, information monitoring and early warning, safe and reliable system
● Modular design: the system consists of battery cabinet, power distribution cabinet, and EMS modules, which can be flexibly configured and support dynamic expansion
● Application scenarios: industrial and commercial energy storage, emergency backup power supply, Diesel-PV-ESS microgrid, etc.
MODEL | EAPVESS130K261KWH-C |
Battery parameters | |
Cell | 314Ah |
Configuration | 1P260S |
Rated energy | 261kWh |
Rated voltage | 832Vdc |
Voltage range | 728~949Vdc |
Max. expandable quantity | 4 clusters |
PV parameters | |
Max. input power | 260kW |
Max. input voltage | 950Vdc |
Rated input voltage | 810Vdc |
Starting voltage | 220Vdc |
Max. input/short-circuit current | 52/55Hz |
MPPT quantity | 6 |
Max. number of MPPT strings | 3 |
Grid parameters | |
Rated input/output power | 260/130kW |
Voltage range | 380/400Vac(-20%~20%), 3/N/PE |
Rated input current | 394A/376.8A |
Rated output current | 197A/188.4A |
Power factor | >0.99(0.8 lead~0.8 lag) |
THDi | <3%@rated power |
Diesel engine parameters | |
Rated power | 130kW |
Voltage range | 380/400Vac(-20%~20%), 3/N/PE |
Rated current | 197A/188.4A |
Backup parameters | |
Rated power | 130kW |
Rated voltage | 380/400Vac, 3/N/PE |
Rated frequency | 50/60Hz |
Rated current | 197A/188.4A |
THDi | <3%@linear rated power |
System general parameters | |
On-grid and off-grid switching time | <20ms |
Max. conversion efficiency | 99% |
Europe/MPPT efficiency | 98.2%/99.9% |
IP rating | Battery cabinet (IP54), battery pack(IP67), power distribution cabinet (IP20), PV-ESS inverter (IP65), power distribution box (IP55) |
Operating temperature | -30~60℃(>45℃ derating) |
Relative humidity | <95%RH(non-condensing) |
Altitude | <4000m(>2000m derating) |
Cooling method | Battery cabinet@Liquid cooling / PV-ESS inverter@air cooling |
Noise | <65dB |
Fire protection system | Cell level+cabinet level gas fire-fighting(perfluorohexanone) / aerosol+water fire-fighting |
Wired/wireless communication | Ethernet (1 Modbus-TCP), RS485(1 Modbus-RTU) /4G/WIFI |
Human-computer interaction | LED, APP, Web |
Standards | IEC62109-1/2, IEC62619, IEC62477-1, UN38.3, UL9540A, UL1973, IEC62933-5-2, IEC61439-2 GB/T34120, GB/T34133, EN50549, IEC61000-6-1,2,3,4 |
Dimensions (WxHxD)(mm) | 1000x2250x1350@battery cabinet, 800x2250x1350@power distribution cabinet |
Weight (kg) | ≤2000@battery cabinet, ≤1000@power distribution cabinet |
