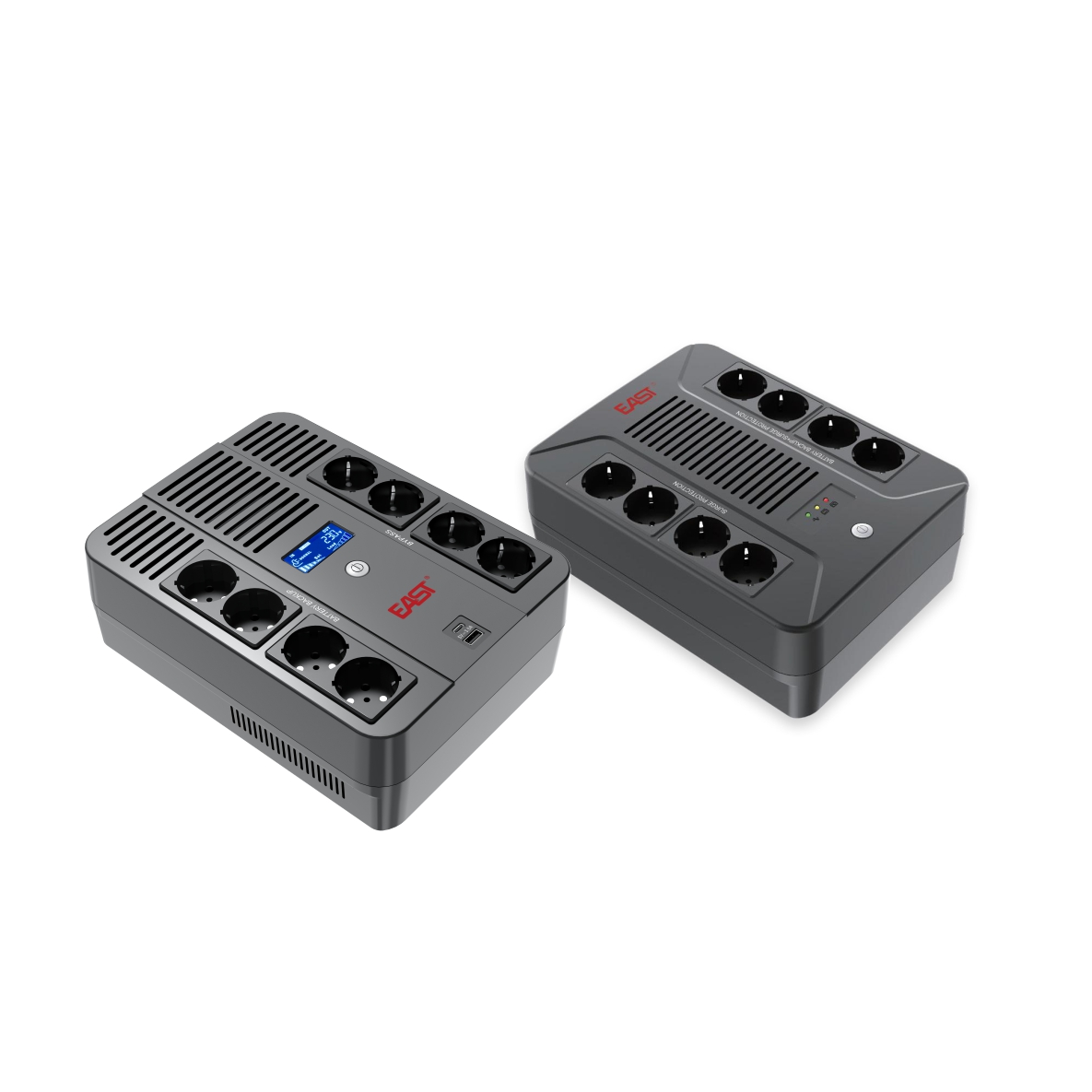

EA200 Plus 600-1000VA

Characteristics Technical Specifications Documents

l  LED display or LCD display selectable

l  Microprocessor-based digital control

l  Boost and buck AVR for voltage stabilization

l  Auto sensing frequency

l  Wide input voltage range

l  Power-on self test

l  Cold start

l  Auto restart when mains power is restored

l  Auto track mains phase to ensure that inverter output voltage has same phase with utility voltage, reducing transfer time and peak surge

l  Intelligent battery management: battery temperature compensation to extend the battery life; three-stage charging to shorten recharge time

l  Short circuit, battery overcharge / overdischarge, overload, surge protections

l  Automatic charging in OFF mode

l  Optional no-load shutdown

l  Optional USB & RJ45 ports

l  Unattended safety shutdown: system alarm and auto Power-On / Off by USB interface communicating with PC


Model

EA260P

EA280P

EA2100P

Capacity

600VA/360W

800VA/480W

1000VA/600W

Input

Voltage range


   220 / 230 / 240 Vac: 162 - 295 Vac or 145   - 295 Vac

Frequency range

50 / 60 Hz (auto-sensing)

Output

Output voltage (battery mode)

220 / 230 / 240 Vac ± 10%

Output frequency (battery mode)

60 Hz / 50 Hz ± 1% (auto-sensing)

Waveform

Mains mode: pure sine wave; Battery mode: simulated   sine wave

Switching time

2 - 8 ms (typical), 12 ms (max.)

Outlet(s) - Toal

8 (Bipasso-schuko socket)

Outlet(s) - Battery &Surge Protected

4 (Bipasso-schuko socket)

Outlet(s) - Surge Protected

4 (Bipasso-schuko socket)

Batteries

DC voltage

12V

Model & numbers

12V/7Ah×1

12V/8Ah×1

12V/9Ah×1

Recharge time

6 ~ 8 h

Indicators

Led display(LED version)

AC Mode, Battery Mode, Battery charge state

Lcd display(LED version)

mains state, Output voltage, Battery capacity, Load   capacity

Protection

Full protection

Short circuit, battery overcharge, over discharge,   overload, surge

Operating environment

Operating temperature

0 - 40

Relative humidity

5 - 90%

Physical

Dimensions(W×D×H)(mm)

205×285×94

Packaged Dimensions(W×D×H)(mm)

255×350×144

Net/Gross weight (kg)

4.5/4.8

5.5/5.8

5.8/6.2
