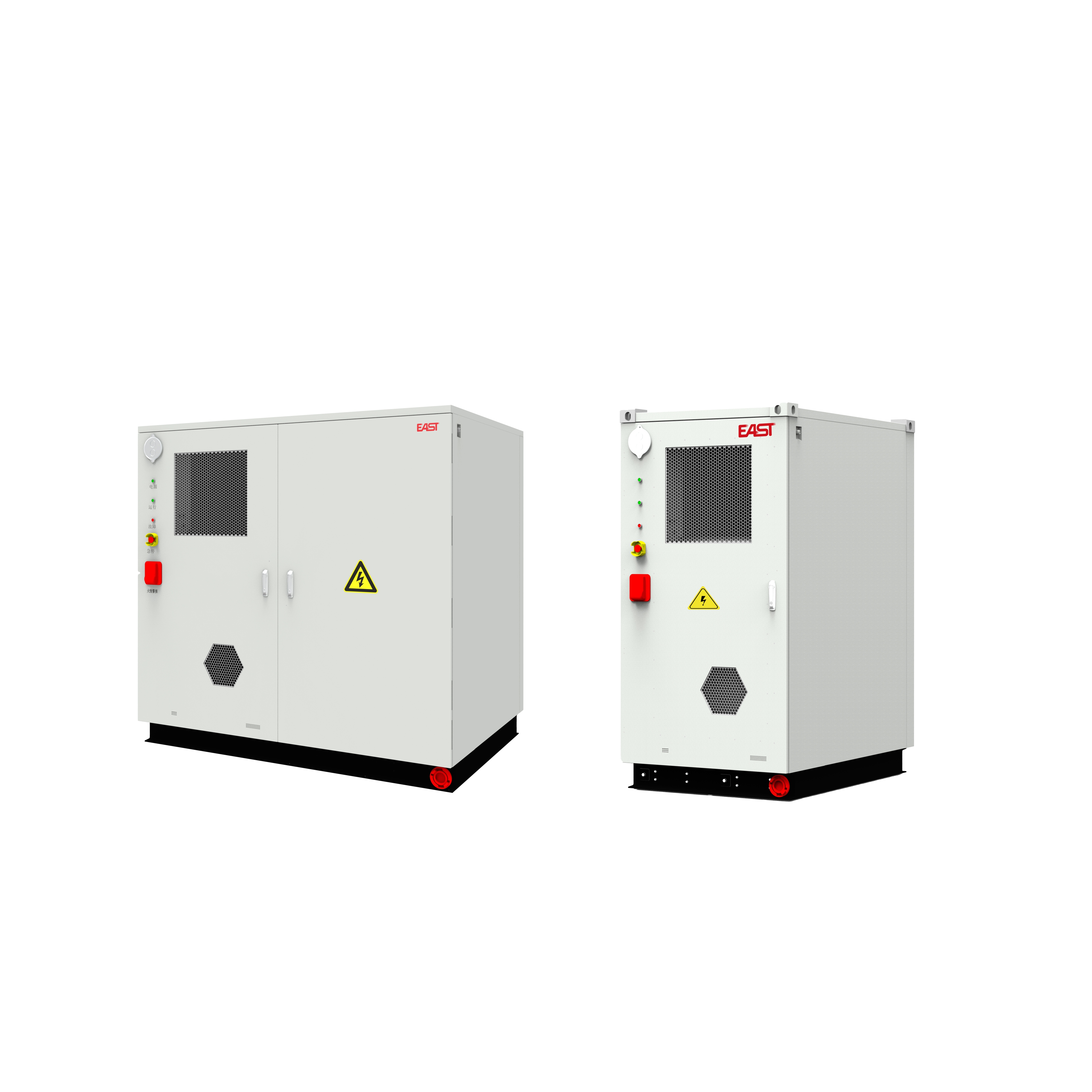

C&I Energy Storage System 30k-60k/100kWh-120kWh
● High protection level: cabinet IP54, Inverter IP66 protection, can be used in a variety of harsh scenarios
● High conversion efficiency: the hybrid inverter adopts SiC technology, with the highest conversion efficiency reaching 98.5%, reducing the cost
● Three-level fire-fighting strategy: Level 1 power off and shutdown protection, Level 2 perfluorohexanone gas start, Level 3 water spray fire-fighting to prevent re-ignition
● Intelligent monitoring: real-time intelligent power balance control, energy management and scheduling, information monitoring and early warning, safe and reliable system
● Modular design: the system consists of battery cabinet, hybrid inverter, and EMS modules, which can be flexibly configured and support dynamic expansion
● Application scenarios: industrial and commercial energy storage, emergency backup power supply, Diesel-PV-ESS microgrid, etc.
MODEL | 30kW-100kWh | 40kW-100kWh | 50kW-100kWh | 30kW-120kWh | 40kW-120kWh | 50kW-120kWh | 60kW-120kWh |
System | |||||||
Rated energy capacity | 100kWh | 120kWh | |||||
Rated system power | 30kW | 40kW | 50kW | 30kW | 40kW | 50kW | 60kW |
On-grid and off-grid switching time | <20ms | ||||||
Max. conversion efficiency | 98.50% | ||||||
European/MPPT efficiency | 97.5% / 99.9% | ||||||
IP rating | Battery cabinet(IP54), Inverter(IP66) | ||||||
Operating temperature | -25℃~+60℃(>45℃ linear derating to 60%) | ||||||
Relative humidity | <95%(non-condensing) | ||||||
Altitude | <4000m | ||||||
Cooling method | Air cooling | ||||||
Noise | <65dB | ||||||
Fire protection system | Cabinet level gas fire-fighting(perfluorohexanone)/aerosol+water fire-fighting | ||||||
Wired/wireless communication | Ethernet, RS485, 4G/WiFi | ||||||
Human-computer interaction | LCD | ||||||
Standards | VDE V 0124-100, VDE-AR-N 4105, Tor Erzeuger Type A, OVE R25, EN 50549-1, EN 50549-2, EΛOT EN 50549-1, PAE 1165-2020, BWBR0037940 Netcode elektriciteit, NA-EEA-NE7, EIFS 2018: 2, Section 8 and 9, Type A, C10/11, MSZ EN 50549-1/-2, EN 50438 NS protection settings, CEI 0-21, UNE 217002, UNE 217001, NTS631 | ||||||
Dimensions(WxHxD)(mm) | 800x2100x1200 | ||||||
Weight(kg) | ≤1300 | ||||||
Battery | |||||||
Cell | 314Ah | ||||||
Configuration | 1P100S | 1P120S | |||||
Rated energy | 100kWh | 120kWh | |||||
Rated voltage | 320Vdc | 384Vdc | |||||
Voltage range | 280~365Vdc | 336~438Vdc | |||||
Inverter | |||||||
Inverter model | ESH30K3PHVG1-EU | ESH40K3PHVG1-EU | ESH50K3PHVG1-EU | ESH30K3PHVG1-EU | ESH40K3PHVG1-EU | ESH50K3PHVG1-EU | ESH60K3PHVG1-EU |
PV parameters | |||||||
Max. input power | 60kW | 80kW | 100kW | 60kW | 80kW | 100kW | |
Max. input voltage | 1000Vdc | ||||||
Input voltage range | 150~950Vdc | ||||||
Starting voltage | 200Vdc | ||||||
Max. input current per string | 8×20A | ||||||
Max. short-circuit current per string | 8×30A | ||||||
MPPT voltage range | 150~850Vdc | ||||||
MPPT quantity/strings per MPPT | 4/2+2+2+2 | ||||||
Grid parameters | |||||||
Rated input/output power | 30kW | 40kW | 50kW | 30kW | 40kW | 50kW | 60kW |
Voltage range | 380V/400V, 3L+N+PE | ||||||
Rated input current | 45.6A/43.3A | 60.8A/57.7A | 76A/72.2A | 45.6A/43.3A | 60.8A/57.7A | 76A/72.2A | 91.2A/86.6A |
Rated output current | 45.6A/43.3A | 60.8A/57.7A | 76A/72.2A | 45.6A/43.3A | 60.8A/57.7A | 76A/72.2A | 91.2A/86.6A |
Power factor | >0.99(0.8 leading~0.8 lagging) | ||||||
THDi | <3%@rated power | ||||||
Diesel engine parameters | |||||||
Rated power | 30kW | 40kW | 50kW | 30kW | 40kW | 50kW | 60kW |
Voltage range | 320V~460V | ||||||
Rated current | 45.6A/43.3A | 60.8A/57.7A | 76A/72.2A | 45.6A/43.3A | 60.8A/57.7A | 76A/72.2A | 91.2A/86.6A |
Backup parameters | |||||||
Rated power | 30kW | 40kW | 50kW | 30kW | 40kW | 50kW | 60kW |
Rated voltage | 380V/400V, 3L+N+PE | ||||||
Rated frequency | 50/60Hz | ||||||
Rated current | 45.6A/43.3A | 60.8A/57.7A | 76A/72.2A | 45.6A/43.3A | 60.8A/57.7A | 76A/72.2A | 91.2A/86.6A |
