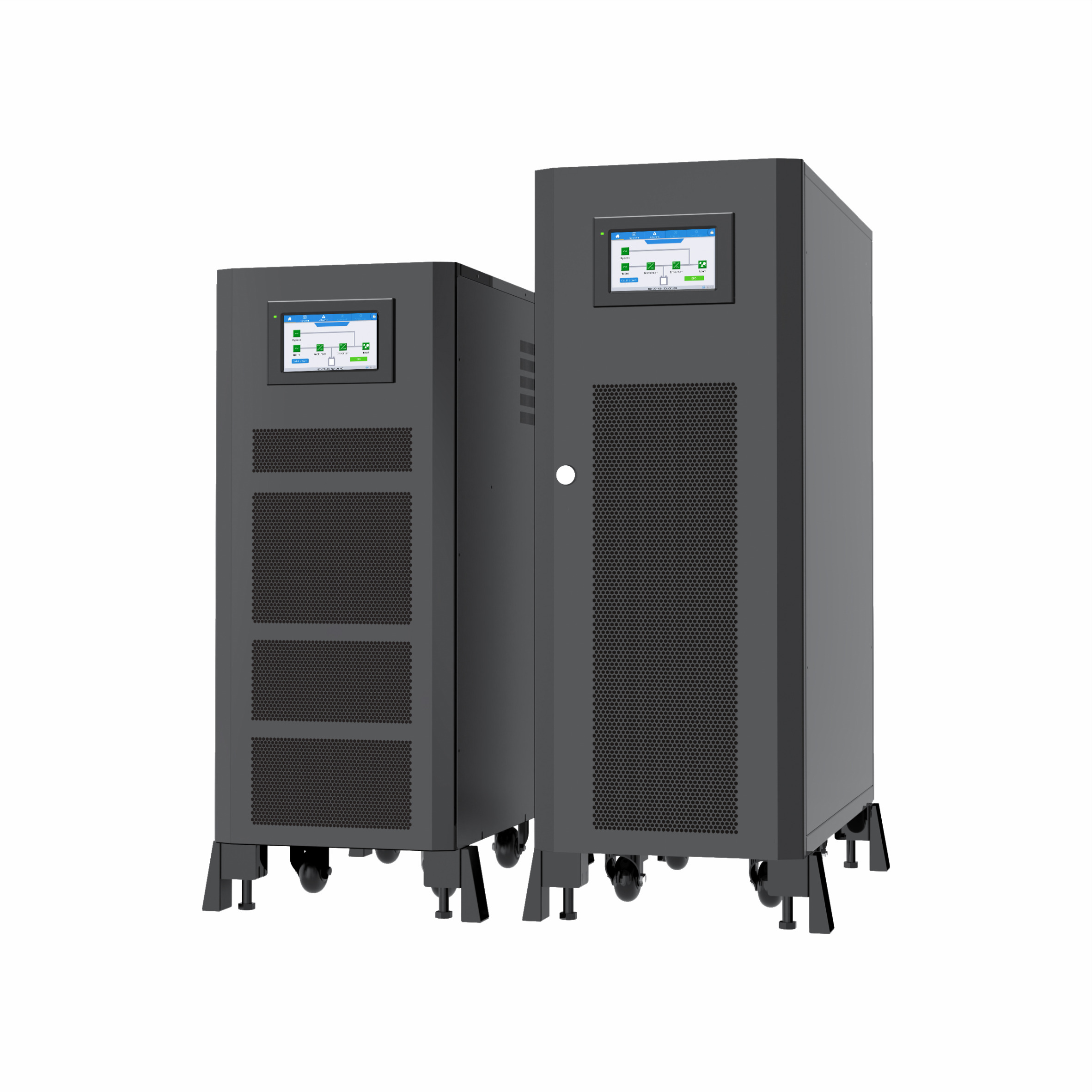

EA890i 30-60kVA
l Regenerative load supportable, no need for extra Dynamic Braking Resistor (DBR)
l IGBT rectifier design with high input power factor ≥0.99
l Online double conversion topology, accept dual-mains input
l DSP technology guarantees high reliability
l Input and output are completely isolated for great security
l True inbuilt galvanic isolation transformer design
l Strong mixed load capacity and high overload capacity
l Redundant fan design and independent ventilation enhances durable operation under harsh environment
l Intelligent self-diagnosing function, superior failure protection, large capability of history records storage
l High efficiency even at light loads
l Adjustable battery numbers
l Intelligent battery management to prolong battery life cycle
l The product features self-aging functionality, and is energy-saving and environmentally friendly
l N+X redundancy parallel operation with up to 6 units (option)
l Variety of communication options available
l EPO & ECO mode operation
l Generator compatible
l High MTBF (>200,000h)
l Low MTTR (<0.5h)
MODEL | EA8930i | EA8940i | EA8960i | |
Capacity | 30kVA | 40kVA | 60kVA | |
INPUT | ||||
Input wiring | Main circuit input: three-phase four-wire (3Φ+PE); Bypass input: three-phase five-wire (3Φ+N+PE) | |||
Rated voltage | 380/400/415Vac | |||
Voltage range | 285~467Vac | |||
Rated frequency | 50/60Hz | |||
Frequency range | 40~70Hz | |||
Power factor | 0.99 | |||
THDi | <5% | |||
OUTPUT | ||||
Output wiring | Three-phase five-wire (3Φ+N+PE) | |||
Rated voltage | 380/400/415Vac | |||
Output voltage regulation | ±1.5% | |||
Output frequency regulation | Main mode: synchronous with bypass input; battery mode: 50/60Hz±0.1% | |||
Waveform | Sinusoidal | |||
Power factor | 0.8 | |||
THDv | ≤2%(linear load), ≤5%(non-linear load) | |||
Crest factor | 3:1 | |||
Overload | 105%<load≤110% for 60mins, 110%<load≤125% for 10mins, 125%<load≤150% for 1min | |||
BATTERIES | ||||
DC voltage | Default 600Vdc | |||
Number of batteries | 12Vx50pcs(50～52pcs settable) | |||
Charging current | Charging rate(settable) x battery capacity(settable) x number of battery groups(settable) | |||
SYSTEM | ||||
Parallel | Up to 6 units | |||
Protections | Short-circuit, overload, overtemperature, overvoltage, undervoltage, battery low voltage and fan failure | |||
Communications | Standard: USB, RS232, RS485, dry contacts; Optional: SNMP card, battery temperture compensation | |||
Display | LCD touch screen+LED | |||
OTHERS | ||||
Operating temperature | -5～40℃ | |||
Storage temperature | -25℃～55℃(without battery) | |||
Relative humidity | 0%～95%(non-condensing) | |||
Altitude | ≤1000m, above 1000m, derating 1% for each additional 100m | |||
IP rating | IP20 | |||
Dimensions (W×D×H)(mm) | 400×785×1010 | 450×860×1210 | ||
Packaged dimensions (W×D×H)(mm) | 400×785×1110 | 450×860×1310 | ||
Net weight(kg) | 260 | 290 | 360 | |
Gross weight(kg) | 230 | 260 | 330 | |
Note: Specifications are subject to change without notice. Pictures are for reference only. Please refer to the actual product.
