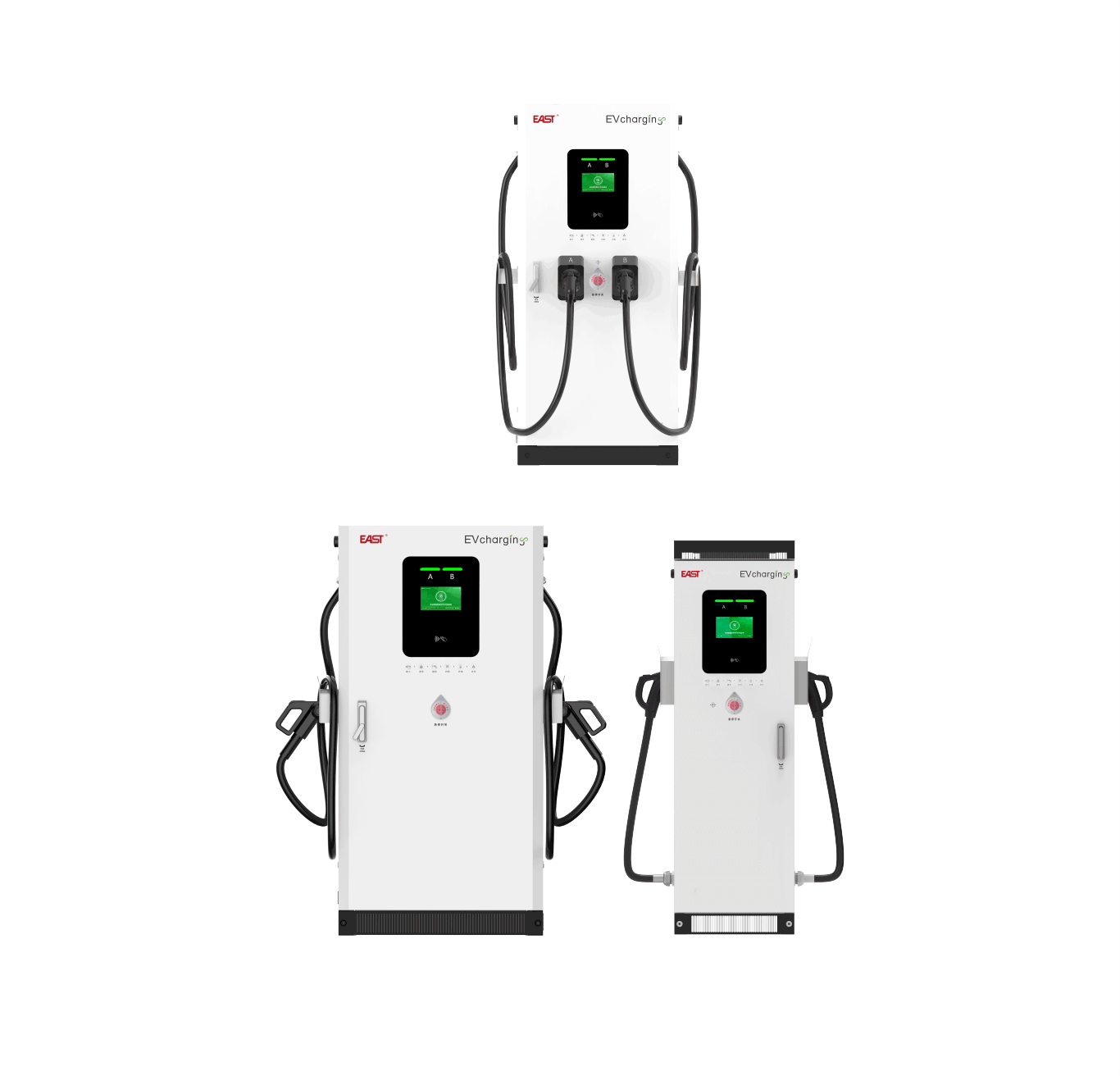

DC Charger 360-480kW
High Safety
l 48-fold software protections: communication protection, battery overtemperature, insolation, etc.
l 13-fold hardware protections: EMC, emergency shutdown, etc.
l Robust, all weatherproof design
l Certified by third party
Reliable Design
l Highly reliable module: fully sealed with glue
l Always connected: Industrial level 3G/4G, Wi-Fi, Ethernet
l Remote services with firmware updates and upgrades
l Autocharge and lSO 15118-ready for plug and charge operation
High ROl
l Easy installation and O&M
l Industry leading energy efficiency > 95%, Module efficiency > 96%
l Al Energy Management Algorithm
l OCPP and OCPl-compliant
Future Proof
l Scale up to 500A liquid cooled CCS cable for easy handling
l Modular, scalable architecture
l Fully converged power distribution and sharing
l Wide voltage range 200 -1000VDC
Features | Items | 360kW / 480kW EVDC-360kW /480kW-10FTHW-6T |
Input | Voltage | 400Vac±15% |
Current | ≤684A~912A | |
Frequency | 50/60Hz | |
Network type | TN/TT/IT(LN voltage 240V) | |
Efficiency | ≥95% | |
Power factor | ≥0.99 | |
THDi | ≤5% | |
Output | Voltage | 200~1000Vdc |
Current | 200A (CCS1/CCS2) / 125A(ChAdeMO) | |
Power | 360kW/480kW | |
Voltage stabilizing accuracy | ≤±0.5% | |
Current stabilization accuracy | ≤±1.0% | |
Features & Functions | Material | Standard: cold rolled steel. Optional for 480kW: galvanized steel |
Indicator | LED | |
Screen | 7 inch color screen | |
Emergency stop | Available | |
Cable length | 5m | |
Parent/child | Up to 6 child units per parent unit (12 for 480kW) | |
Communication | Vehicle connection | Cable |
Number of charging guns | 6 (12 for 480kW) | |
Communication | Standard: Ethernet. Optional: 4G, WIFI | |
User authentication | RFID, APP | |
Backend protocol | OCPP1.6J | |
Support language | English, other languages available upon request | |
Safety | Safety protection | Overvoltage, undervoltage, grounding, ambient overtemperature, lightning, leakage, overcurrent, relay sticking detection, integrated surge protection |
Certifications &Standards | Certifications | CE, RoHS |
Standards | IEC 62196, IEC 61851, CHAdeMO 2.0, DIN 70121, ISO 11851 | |
General Design | Dimensions (H×W×D) | Power cabinet: 2000x1500x1000 mm; User unit: 2000x750x900 mm |
Weight | Power cabinet: ≤1000kg; User unit: ≤260kg | |
IP rating | IP54 | |
Installation | Ground-mounted | |
Operating Temp. | -30℃ to +50℃ | |
Humidity | 5% to 95% | |
Altitude | ≤2000 meters | |
Warranty | Warranty | 36 months |
