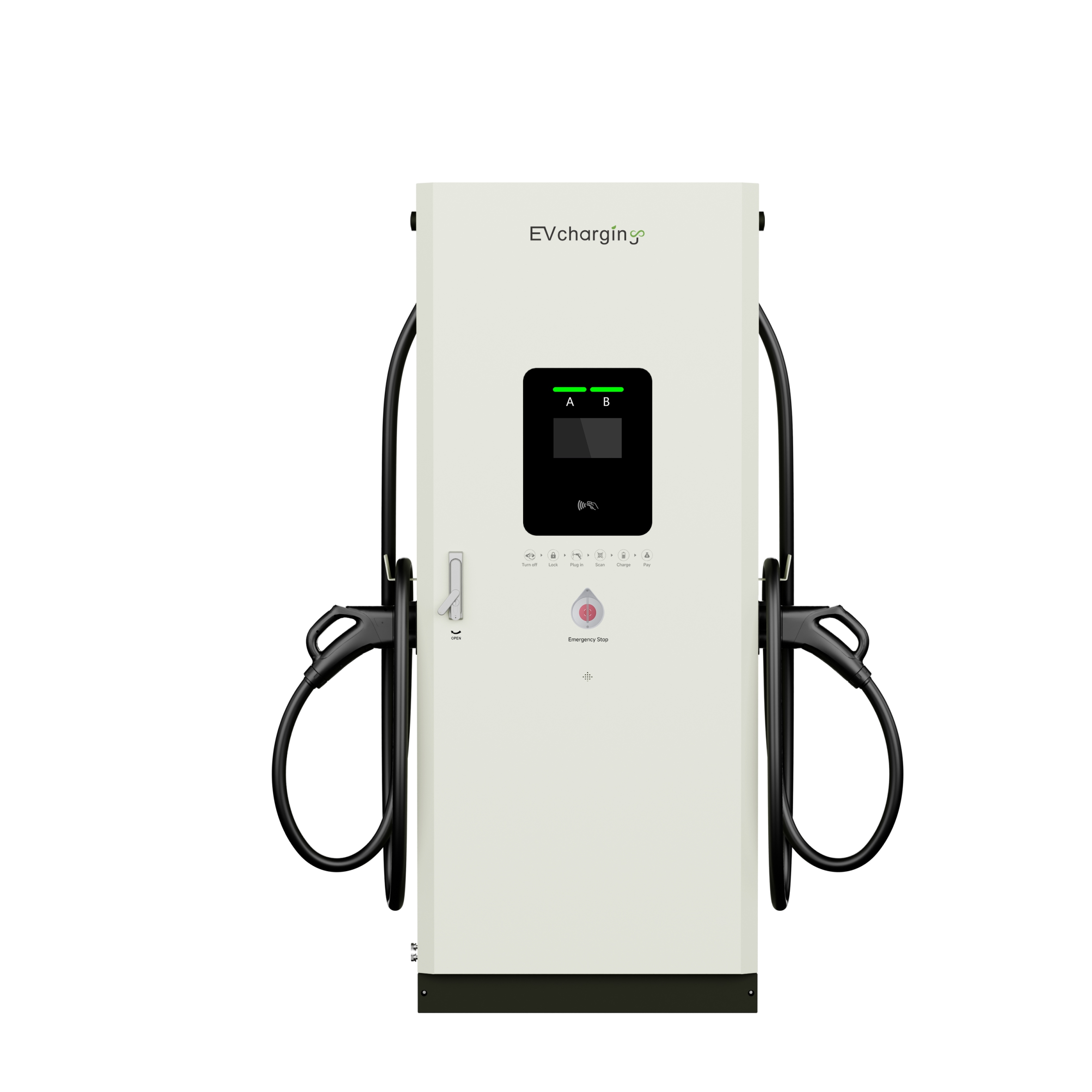

320-480kW EVDC Fast Charger
Safe and Reliable
l Over 54 multi-dimensional safety protection
l Ensure safe and intelligent charging
l Intelligent O&M, online OTA upgrade
Ultimate Experience
l 200V to 1000V wide voltage range
l Universal application with high flexibility
High Efficiency
l High conversion efficiency
l Low standby power
l Dynamically allocate power granularity
High ROI
l Pre-installation, easy to transport and maintain
l Distribute power via auto dynamic load management
l High power efficiency and heat dissipation performance
Category | Item | EVDC-320/360/400/480kW-10YHW | |||
Input | Voltage | 400V±10% | |||
Current | 644A | 724A | 805A | 966A | |
Frequency | 50/60Hz | ||||
Power factor | ≥0.99 | ||||
THDi | <5% | ||||
Output | Power | 320kW | 360kW | 400kW | 480kW |
Voltage | 200~1000V | ||||
Constant power voltage range | 300~1000V | ||||
Max current | 250A | 250A/300A | 300A/400A | 400A | |
Outlet | GB/T, CCS2 | ||||
Peak efficiency | ≥96% | ||||
Voltage regulation accuracy | ≤±0.5% | ||||
Current regulation accuracy | ≤±1% | ||||
Peak ripple coefficient | ≤0.5% | ||||
Noise level | <65dB | ||||
Charging configuration | Number of connectors | 2 | |||
Cable length | 7m standard(custom lengths available) | ||||
Activation methods | QR code scan, RFID card, VIN authentication | ||||
Power allocation | Dynamic power sharing | ||||
User interface | 7-inch HD touch display | ||||
BMS auxiliary power | Standard 12V(12V/24V optional) | ||||
Communication | RJ45 Ethernet, 4G LTE | ||||
Environmental specifications | Operating temperature | -25℃ to +55℃ | |||
Storage temperature | -40℃ to +80℃ | ||||
Relative humidity | ≤95%(non-condensing) | ||||
Altitude | ≤4000m (derating required above 2000m) | ||||
Physical specifications | Main unit dimensions (W×H×D)(mm) | 800x1950x730 | |||
Cooling method | Forced air cooling | ||||
Safety protection | IP54 | ||||
320-480kW EVDC Fast Charger Datasheet - PDF
