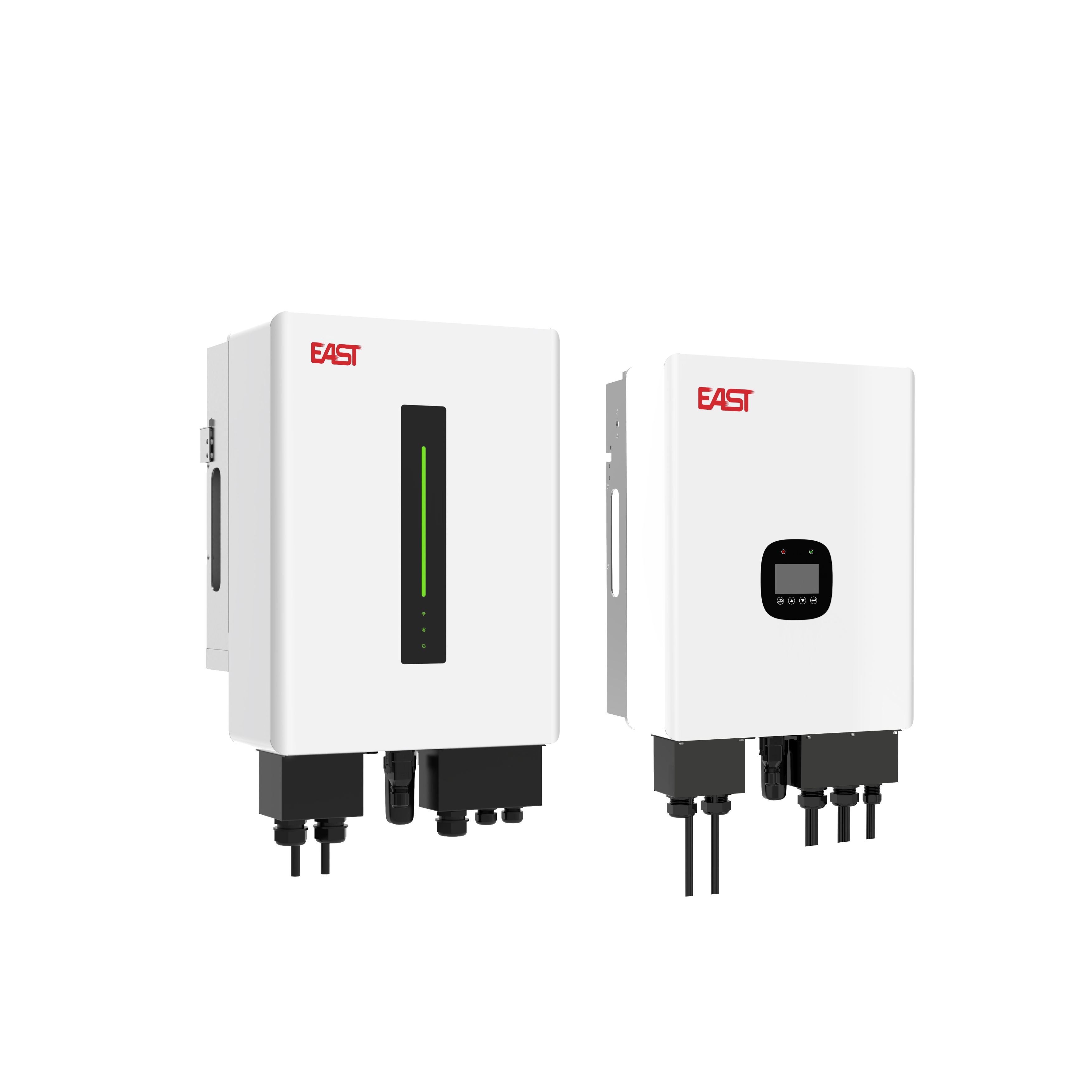

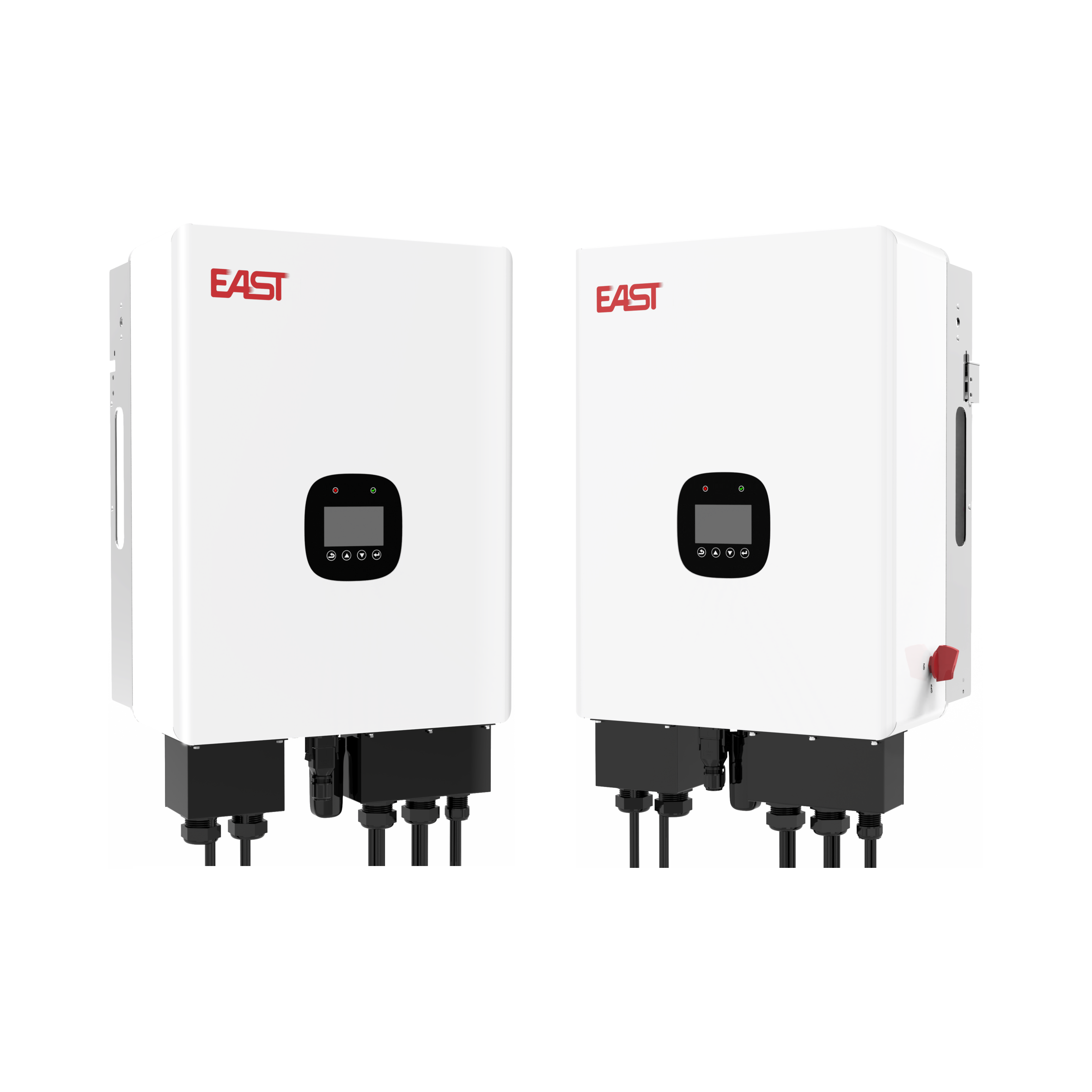

Single-phase Residential Energy Storage Inverter EAHI 10-12KSL
l Supports PV inverter, generators, and microgrid inputs, suitable for new and modified photovoltaic and microgrid systems
l Supports multiple mode settings, supports local independent operation and peak shaving
l App real-time monitoring, supports online remote OTA upgrades, easy operation and maintenance
l Supports multiple inverters with EPS output in parallel, and can be expanded to small industrial and commercial applications
l Mains and PV input power oversized at a ratio of 1.5, resulting in a more stable system operation
l Support RSD and AFCI optional configurations to provide safer protection for the system
MODEL | EAHI10KSL | EAHI12KSL | |
PV input | |||
Max. input power | 18KW | 18KW | |
Max. open-circuit voltage | 550Vdc | ||
Rated input voltage | 360Vdc | ||
Start-up voltage | 150Vdc | ||
Min. operating voltage | 100Vdc | ||
MPPT voltage range | 100~540Vdc | ||
Full power MPPT voltage range | 300V~500V | ||
Max. input current per MPPT | 30A/30A | ||
Max. short-circuit current per MPPT | 40A/40A | ||
MPPT quantity | 2 | ||
Number of input strings per MPPT | 2/2 | ||
Battery input | |||
Battery type | Li-ion battery / Lead acid battery | ||
Voltage range | 42~58Vdc | ||
Max. charge/discharge current | 180A/180A | 250A/250A | |
AC input and output (Grid) | |||
Max. apparent power of grid | 15KVA | 18KVA | |
Max. input current | 68.2A | 81.8A | |
Input voltage range | 184~276Vac | ||
Input frequency range | 50±5Hz | ||
Rated output power | 10KW | 12KW | |
Max. output apparent power | 10KVA | 12KVA | |
Rated output voltage | 1/N/PE, 220 / 230Vac | ||
Rated output frequency | 50Hz | ||
Rated output current | 45.5A / 43.5A | 54.5A / 52.2A | |
Max. output current | 45.5A | 54.5A | |
Power factor | >0.99 (0.8 leading ~ 0.8 lagging) | ||
THDI | ≤3% (@ rated power) | ||
Generator input | |||
Max. input power | 10kW | 12kW | |
Max. input current | 45.5A | 54.5A | |
AC output (Back-up) | |||
Rated output power | 10KW | 12KW | |
Max. apparent power | 10KVA | 12KVA | |
Rated output voltage | 1/N/PE, 220Vac/230Vac | ||
Rated output frequency | 50Hz | ||
Rated output current | 45.5A / 43.5A | 54.5A / 52.2A | |
Max. output current | 45.5A | 54.5A | |
THDV | ≤3% (linear load) | ||
Switching time | ≤20ms | ||
Efficiency | |||
Max. efficiency | 97.8% | ||
MPPT efficiency | 99.9% | ||
Protections | |||
Protections | Over/under voltage, over/under-frequency, overload, output short-circuit, over temperature, residual current monitoring unit, output over-current, insulation resistance detection, anti-islanding, surge protection | ||
Surge protection | DC Type II / AC Type II | ||
Other | |||
Dimensions (W*H*D) | 450x600x270mm | ||
Weight | 45kg | ||
Topology | High frequency isolation (for battery) | ||
IP rating | IP66 | ||
Operating temperature | -25℃~+60℃ | ||
Cooling mode | Smart cooling | ||
Altitude | 3000m | ||
Noise level at 1 m | ≤55dB | ||
Installation mode | Wall hanging | ||
Standards | |||
Safety regulation | IEC/EN 62109-1/-2, AS62109 | ||
EMC | EN 61000-6-1/-2/-3/-4 | ||
Grid connection | NRS097-2-1:2017 | ||
