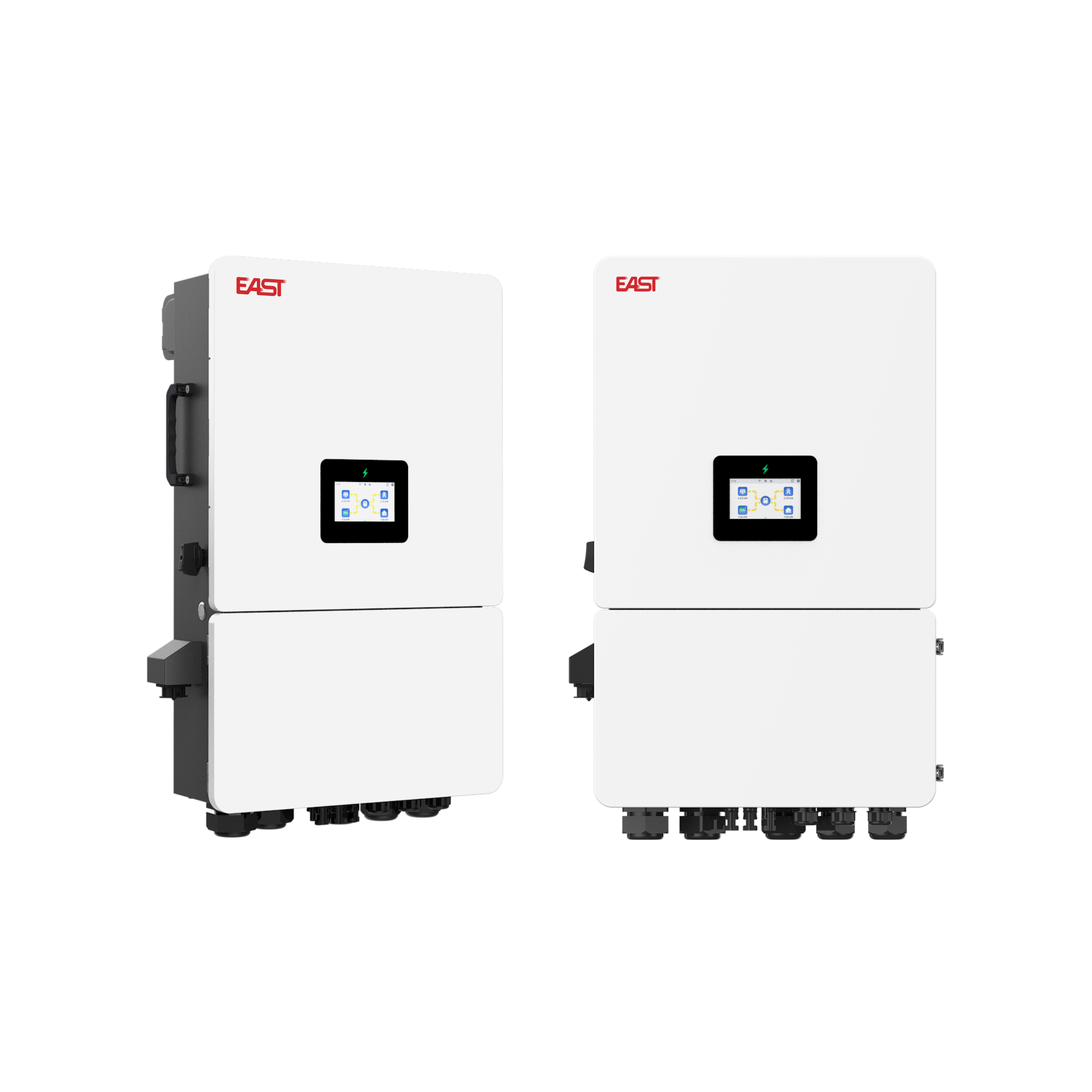

Hybrid Inverter ESH10K/15K/20K3PLVG2-AA
● Three independent MPPT channels, max. 30kW PV input, up to 380A battery charge/discharge current
● Compatible with 40~60V lithium & lead-acid batteries, support generator connection, smart load output and AC coupling
● Powerful parallel capability: max. 9 units parallel connection, compatible with both on-grid and off-grid working modes, support three-phase unbalanced output
● IP65 dustproof & waterproof design, equipped with MC4 PV connectors, multiple built-in protection circuits, optional AFCI 2.0 arc fault protection
● Equipped with seamless UPS backup transfer function to keep loads powered during power outage
● Equipped with 4.3-inch color touch screen, support 6-stage timing schedule for battery charging and discharging, local operation & cloud real-time remote monitoring
MODEL | ESH10K3PLVG2-AA | ESH15K3PLVG2-AA | ESH20K3PLVG2-AA |
PV input | |||
Max. input power | 40000W | ||
Max. input voltage | 1000V | ||
Start-up voltage | 120V | ||
MPPT voltage range | 160V~980V | ||
Max. input current | 20A | ||
Max. short circuit current | 30A | ||
Number of MPPT/max. number of PV strings | 3/1 | ||
Battery input/output | |||
No. of battery input | 2 | ||
Battery voltage range | 40V~60V | ||
Max. charge/discharge current | 380A/250A | 380A/350A | 380A/380A |
Max. charge/discharge power | 20000W/12000W | 20000W/18000W | 20000W/20000W |
Battery BMS communication | RS485/CAN | ||
AC output (Backup & Smart) | |||
Rated output power | 10000W | 15000W | 20000W |
Max. apparent output power | 11000VA | 16500VA | 22000VA |
Rated output current | 16.7A | 25A | 33.3A |
Rated output voltage/frequency | 3L+N+PE, 220V/380V; 230V/400V; 240V/415V, 50Hz/60Hz | ||
Power factor | >0.99(0.8 leading~0.8 lagging) | ||
THDi | <3%@rated power | ||
EPS switching time | <10ms(typical) | ||
Starting surge | 5min@1.2×rated power | ||
THDu | <3%(linear load) | ||
AC input (Grid & Gen) | |||
Max. AC charging power(grid to battery) | 20000W | ||
Max. grid input current | 45A | ||
Max. generator input power | 30000A | ||
Rated input voltage/frequency | 3L+N+PE, 220V/380V; 230V/400V; 240V/415V, 50Hz/60Hz | ||
Efficiency | |||
Max. efficiency | 97.6% | ||
European efficiency | 97.00% | ||
MPPT efficiency | 99% | ||
General parameters | |||
Display | LED+LCD | ||
Communications | RS485/CAN(for BMS), RS485(for Meter), DRMs, CAN(for parallel), 2 DO, 2 DI, USB(for Wi-Fi/LAN, optional) | ||
Max. operation altitude | 4000m(>2000m derating) | ||
IP rating | lP65 | ||
Operating temperature | -25℃~+60℃(>45℃ derating) | ||
Humidity | 0~100% | ||
Cooling mode | Smart cooling | ||
Noise level | <45dB | ||
Dimensions (W×H×D)(mm) | 460×742×266 | ||
Net weight (kg) | 46.5 | ||
Hybrid Inverter ESH10K/15K/20K3PLVG2-AA Datasheet - PDF
